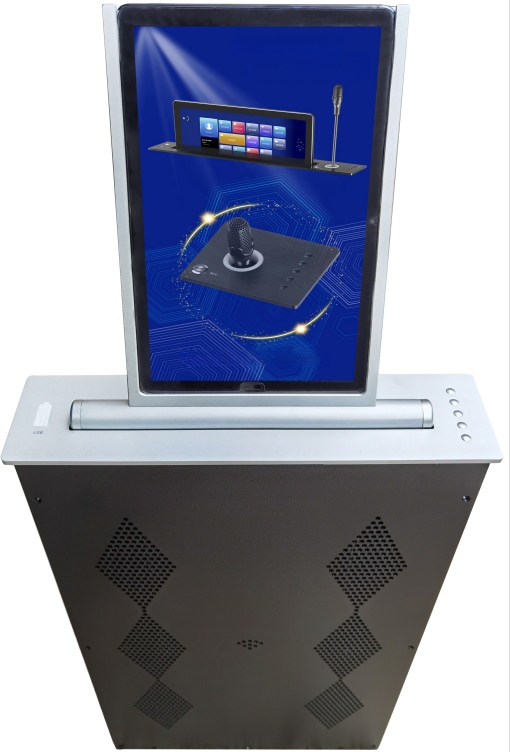

Universal PAD Intelligent Tablet Elevator
The ultra-thin intelligent tablet lifter is the latest specialized lifter developed by our factory for multimedia conference systems. The product is lightweight, stable and reliable in performance, and easy to operate; When using the tablet during a meeting, one click control can be used to lift it up. During the lifting process, the lifter panel automatically opens, and the tablet extends upright from the desktop. After lifting, the comfortable angle is automatically adjusted. During the viewing process, the angle can be fine tuned or continuously adjusted. After the meeting, one click control can be used to lower the lifter. When the tablet starts to descend, it automatically adjusts to an upright state, and the power supply of the tablet is automatically cut off (or kept charging). When the tablet fully descends, the panel automatically closes to ensure a flat and beautiful desktop. The entire use process avoids complex manual operations, avoids damage to the tablet, and has functions such as anti-theft, dust-proof, beautiful and tidy desktop.
¡¡
The paperless intelligent desktop terminal adopts a 12.02-inch tablet high-definition widescreen design, which fully conforms to the comfortable visual effect of human sitting posture at the conference site. The height is strictly designed to not obstruct the line of sight angle, equipped with an integrated elevator and no backboard connection, highlighting the high-end atmosphere of the product and perfectly realizing the powerful interactive paperless conference function.
Uses£º
This product is used in high-end important venues such as paperless conference systems, advanced multimedia conference systems, remote video conferencing systems, monitoring systems, military command centers, educational multimedia centers, multifunctional lecture halls, academic exchange centers, training centers, intelligent office furniture, etc.
Product characteristics£º
1. Using a PAD with an IPS screen of no less than 12 inches, it does not support wireless and Bluetooth function modules;
2. Resolution not less than 1920 * 1080, brightness of 300cd/m2, 10 touch points;
3. Thickness: below 7.0mn;
4. CPU clock speed ¡Ý 1.6G;
5. Operating system: Android/Kirin, built-in microphone and speaker on the screen;
6. Memory: DR4 ¡Ý 4G, hard drive: SSD ¡Ý 128
7. PAD elevation range: freely adjustable from 0 to 25 degrees;
8. Control methods: manual control, central control, computer software, RS-485;
9. Machine structure: lifting and flipping structure+PAD
10. Equipped with frequency interface, USB interface, and audio interface;
11. Can be lifted and lowered on the conference desktop to hide charging, with no connection to the desktop, and can be connected to a wired network port;
12. The touch screen can be detached for independent use, and the screen body shell adopts an integrated design.
Support one click access to the conference materials folder on the conference terminal page, allowing offline reading of conference materials.
When the tablet client connects to the server, it actively retrieves the conference materials from the backend and automatically downloads them to the offline folder.
When pushing files to the offline folder, the client prompts "transferring files, please keep the terminal online".
15. When the file has been pushed to the offline folder and the client is offline, the user will be prompted "You are offline, please click confirm to enter the offline folder to view the file". When clicking the "confirm" button, the pop-up window will disappear and the user will be redirected to the designated directory of the offline folder.
Product parameters£º
1. Display screen size: 12.02 inches
2. Working environment: Environmental temperature: 5 ¡æ~40 ¡æ; Relative humidity: ¡Ý 75%
3. Working power consumption: AC~220V/50Hz/30W
4. Panel size: 428 ¡Á 88 ¡Á 5mm (length ¡Á height ¡Á thickness)
5. Color: Black brushed and silver brushed or customized according to customer's desired color.
