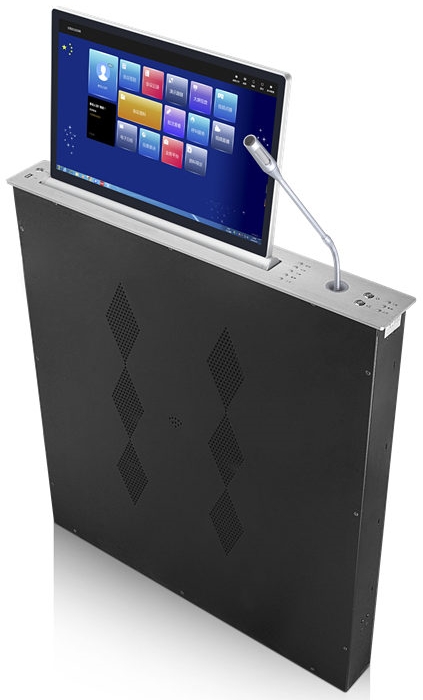

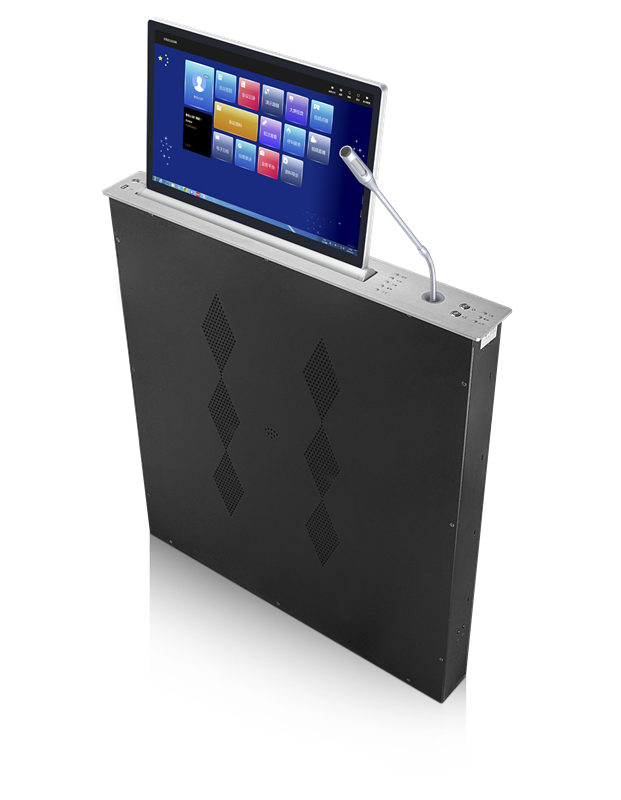

17.3-inch paperless microphone asynchronous lifting terminal (microphone screen asynchronous lifting, microphone and screen can be independently lifted and lowered separately, including microphone)
Product Introduction:
The ultra-thin high-definition screen lifter is the earliest multifunctional lifter developed by our factory for multimedia conference systems. The product is lightweight, stable and reliable in performance, and easy to operate with intelligence. During the rising process of the LCD display, the panel automatically opens, and the LCD display extends upright from the desktop, automatically adjusting the angle, which can be fine tuned or continuously adjusted. When the elevator starts to descend, the LCD screen automatically adjusts to an upright state, the monitor power is automatically cut off, the LCD screen fully descends, and the panel automatically closes to avoid manual operation and monitor damage. It has functions such as anti-theft, dust-proof, and desktop beautification.
This product can be used as a standalone device or in groups of multiple devices. It can be operated manually, remotely, or through a central controller (purchased separately) to achieve centralized computer control.
¡¡
Product Introduction:
The ultra-thin high-definition screen lifter is the earliest multifunctional lifter developed by our factory for multimedia conference systems. The product is lightweight, stable and reliable in performance, and easy to operate with intelligence. During the rising process of the LCD display, the panel automatically opens, and the LCD display extends upright from the desktop, automatically adjusting the angle, which can be fine tuned or continuously adjusted. When the elevator starts to descend, the LCD screen automatically adjusts to an upright state, the monitor power is automatically cut off, the LCD screen fully descends, and the panel automatically closes to avoid manual operation and monitor damage. It has functions such as anti-theft, dust-proof, and desktop beautification.
This product can be used as a standalone device or in groups of multiple devices. It can be operated manually, remotely, or through a central controller (purchased separately) to achieve centralized computer control.
Product Overview:
1. Adopting a 17.3-inch high-definition widescreen design and ergonomic design, it fully conforms to the most comfortable visual effect for conference personnel; Equipped with a high-definition screen microphone for asynchronous lifting and lowering, the LCD screen and microphone can be independently lifted and lowered freely. The screen does not block the line of sight angle design, and adopts seamless docking technology, drawing on Apple's high light processing technology to showcase the high-end atmosphere of the product; Paired with a paperless conference system, it perfectly achieves interactive paperless and powerful conference functions.2. Paperless 17.3-inch high-definition screen lifter+digital microphone asynchronous lifting.
Product features:
1. The shell of the ultra-thin high-definition LCD screen is made of high-strength aviation grade aluminum alloy material, with the surface treated with sandblasting and anodizing, and the surrounding area treated with high gloss technology to prevent scratches and scratches; The thickness of the outer shell edge is only 6.8mm.
2. Adopting a 17.3-inch multi point capacitive touch high-definition LCD screen and Taiwan EX3000 control chip, the touch is more sensitive and accurate; Resolution up to 1920 ¡Á 1080dpi, IPS full view LCD screen with clear and bright display effect.
3. The ultra-thin high-definition screen lifter adopts a double linear bearing double light rod gear rack lifting structure, which runs smoothly and is durable, with a service life of over ten years; Dual motor drive, dual circuit voltage protection design mode, with power protection function.
4. The ultra curved circular shaft seamlessly connects with the ultra-thin high-definition screen, ensuring no exposed connecting wires, no connecting backplates, and no exposed screws. The overall high-end and atmospheric elevator ensures the overall aesthetics and fashion of the lifting display touch screen.
5. The elevator panel comes with a waterproof switch, which has buttons for ascending, pausing, descending, tilting forward, and backward operation. It is equipped with computer switch buttons and indicator light display function; The panel is preset with a USB information interface, supporting the import and export of document data.
6. The elevator supports 232 control by hand, software control, manual control, touch control, PC docking, compatibility with commonly used operating systems, and can be controlled uniformly or in any group to control the movement status of the elevator, such as up, pause, and down,
7. The elevator supports an electric elevation angle of 0-30 degrees, which can be adjusted slightly or continuously to ensure the optimal viewing angle and touch angle of the display; The elevator has a touch screen protection system, anti shake design, safe and reliable, to avoid damage to the elevator caused by excessive force during the touch process.
8. Adopting an ultra long lifespan of 315 degrees dual section omnidirectional bending stainless steel hose, the microphone rod comes with a correction and straightening function, which eliminates the need for manual straightening and facilitates maintenance by management personnel; Specially made all aluminum alloy microphone head with efficient howling suppression function, achieving super strong sound pickup effect.
1. Display screen size: 17.3 inches
2. Display ratio: 16:9
3. Physical resolution: 1920 ¡Á one thousand and eighty
4. Display perspective: IPS full view
5. Touch screen type: capacitive screen, 10 point touch
6. Interface: 1 ¡Á HDMI, 1 ¡Á USB2.0
7. Working environment: Environmental temperature: 5 ¡æ~40 ¡æ; Relative humidity: ¡Ý 75%
8. Working power consumption: AC~220V/50Hz/30W
9. Panel size: 678 ¡Á eighty-eight ¡Á 5mm (length ¡Á high ¡Á
