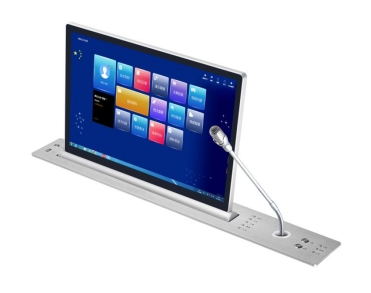

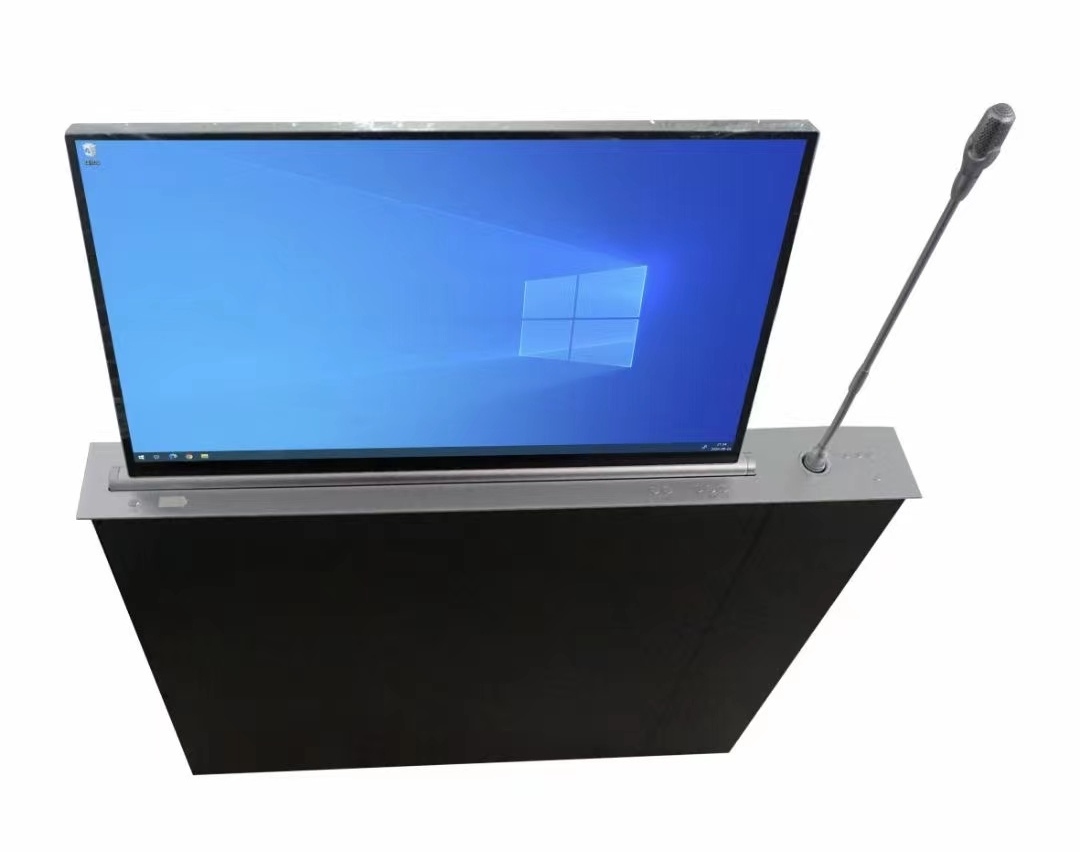

21,5-inch paperless microphone synchronous lifting terminal (microphone screen synchronous lifting, including microphone)
Product Introduction:
The ultra-thin high-definition screen lifter is the earliest multifunctional lifter developed by our factory for multimedia conference systems. The product is lightweight, stable and reliable in performance, and easy to operate with intelligence. During the rising process of the LCD display, the panel automatically opens, and the LCD display extends upright from the desktop, automatically adjusting the angle, which can be fine tuned or continuously adjusted. When the elevator starts to descend, the LCD screen automatically adjusts to an upright state, the monitor power is automatically cut off, the LCD screen fully descends, and the panel automatically closes to avoid manual operation and monitor damage. It has functions such as anti-theft, dust-proof, and desktop beautification.
This product can be used as a standalone device or in groups of multiple devices. It can be operated manually, remotely, or through a central controller (purchased separately) to achieve centralized computer control.
¡¡
Product Overview:
1. The touchless paperless intelligent desktop adopts a 21.5-inch high-definition widescreen design, which fully conforms to the comfortable visual effect of the human sitting posture at the conference site. The height is strictly designed according to the unobstructed view angle, equipped with an integrated elevator, and connected seamlessly and without a backplate, highlighting the high-end atmosphere of the product; Paired with paperless conference terminals, it perfectly achieves interactive paperless and powerful conference functions.2. Paperless 21.5-inch high-definition screen lifter+microphone synchronous lifting.
Product features:
1. The touch sensitive ultra-thin high-definition display screen is made of aluminum alloy material, with a surface treatment of sandblasting anodizing. The ultra-thin LCD screen is designed, and the edge thickness of the shell is only 6.8mm.
2. Adopting a 21.5-inch multi point capacitive touch high-definition LCD screen with a resolution of 1920 ¡Á 1080dpi, IPS full view LCD screen with clear and bright display effect.
3. The elevator panel is made of aviation aluminum material, with anodized wire drawing process and ultra-thin design. The panel width is only 8.8mm.
4. The touch control ultra-thin high-definition display screen and ultra-thin circular shaft elevator have no exposed connecting wires, connecting backplates, or exposed screws, ensuring that the overall appearance of the lifting display touch screen is elegant.
5. The elevator supports 232 control by hand, software control, and manual control. The control software supports PC installation and is compatible with commonly used operating systems. It can be controlled uniformly or in any group to control the movement status of the elevator, such as lifting, pausing, and lowering.
6. The elevator panel has: up, pause, down, multimedia conference terminal switch interfaces; The elevator supports an automatic elevation angle of 0-35 degrees, ensuring the optimal viewing angle and touch angle of the display.
7. Equipped with power protection function, the elevator desktop panel is preset with a USB information interface, supporting document data import and export. 8. Adopting an ultra long lifespan of 315 degrees dual section omnidirectional bending stainless steel hose, the microphone rod comes with a correction and straightening function, which eliminates the need for manual straightening and facilitates maintenance by management personnel; Specially made all aluminum alloy microphone head with efficient howling suppression function, achieving super strong sound pickup effect.
Product parameters:
1. Display screen size: 21.5 inches
2. Display ratio: 16:9
3. Physical resolution: 1920 ¡Á one thousand and eighty
4. Display perspective: IPS full view
5. Touch screen type: capacitive screen
6. Interface: 1 ¡Á HDMI, 1 ¡Á USB2.0
7. Working environment: Environmental temperature: 5 ¡æ~40 ¡æ; Relative humidity: ¡Ý 75%
8. Working power consumption: AC~220V/50Hz/30W
9. Panel size: 710 ¡Á eighty-eight ¡Á 5mm (length ¡Á high ¡Á Thick)
10. Display screen size: 530 ¡Á three hundred and sixteen ¡Á 3.8mm (length ¡Á high ¡Á Thick)
