Product Overview:

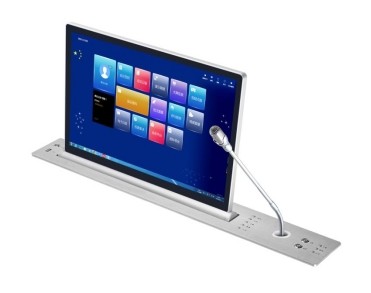

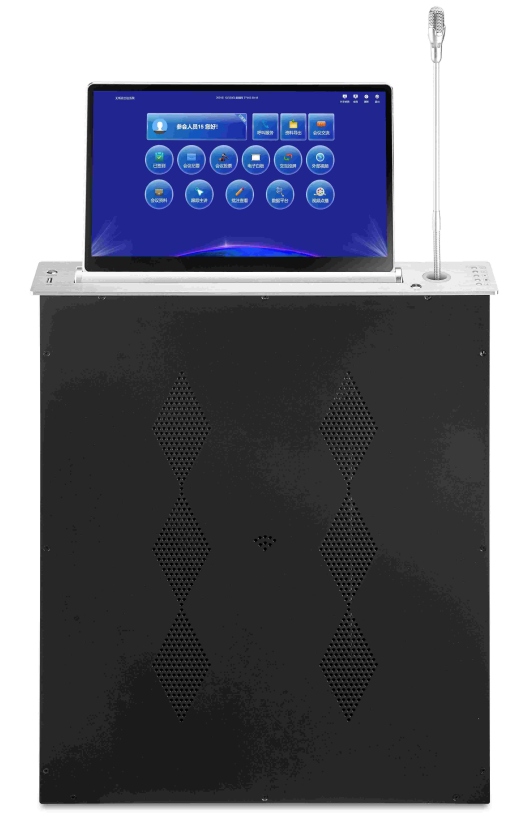

1. The paperless intelligent desktop adopts a 15.6-inch high-definition widescreen design, which fully conforms to the comfortable visual effect of the human sitting posture at the conference site. The height is strictly designed according to the angle of unobstructed vision, equipped with an integrated elevator, and connected seamlessly and without a backplate, highlighting the high-end atmosphere of the product; Paired with paperless conference terminals, it perfectly achieves interactive paperless and powerful conference functions.
2. Paperless 15.6 high-definition screen lifter+microphone synchronous lifting.
Product features:
1. The touch sensitive ultra-thin high-definition display screen is made of aluminum alloy material, with a surface treatment of sandblasting anodizing. The ultra-thin LCD screen is designed, and the edge thickness of the shell is only 6.8mm.
2. Adopting a 15.6-inch multi point capacitive touch high-definition LCD screen with a resolution of 1920 × 1080dpi, IPS full view LCD screen with clear and bright display effect.
3. The elevator panel is made of aviation aluminum material, with anodized wire drawing process and ultra-thin design. The panel width is only 8.8mm.
4. The touch control ultra-thin high-definition display screen and ultra-thin circular shaft elevator have no exposed connecting wires, connecting backplates, or exposed screws, ensuring that the overall appearance of the lifting display touch screen is elegant.
5. The elevator supports 232 control by hand, software control, and manual control. The control software supports PC installation and is compatible with commonly used operating systems. It can be controlled uniformly or in any group to control the movement status of the elevator, such as lifting, pausing, and lowering.
6. The elevator panel is equipped with: up, pause, down, forward, and backward tilt; Multimedia conference terminal switch interface; The elevator supports an automatic elevation angle of 0-35 degrees, ensuring the optimal viewing angle and touch comfort of the display.
7. With power protection function, there is no operation for a few minutes after the screen drops, and automatic power off protection is provided; The desktop panel of the elevator is equipped with a preset USB information interface, which supports document data import and export. It is equipped with a display light and computer switch to constantly know the computer status, avoiding accidental startup without knowing the situation.
8. Adopting an ultra long lifespan of 315 degrees dual section omnidirectional bending stainless steel hose, the microphone rod comes with a correction and straightening function, which eliminates the need for manual straightening and facilitates maintenance by management personnel; Specially made all aluminum alloy microphone head with efficient howling suppression function, achieving super strong sound pickup effect.

Product parameters:

1. Display screen size: 15.6 inches
2. Display ratio: 16:9
3. Physical resolution: 1920 × one thousand and eighty
4. Display perspective: IPS full view
5. Touch screen type: capacitive screen, 10 point touch
6. Interface: 1 × HDMI, 1 × USB2.0
7. Working environment: Environmental temperature: 5 ℃~40 ℃; Relative humidity: ≥ 75%
8. Working power consumption: AC~220V/50Hz/30W
9. Panel size: 558 × eighty-eight × 5mm (length × high × Thick)
10. Display screen size: 238 × two hundred and thirty-seven × 3.8mm (length × high × Thick)
