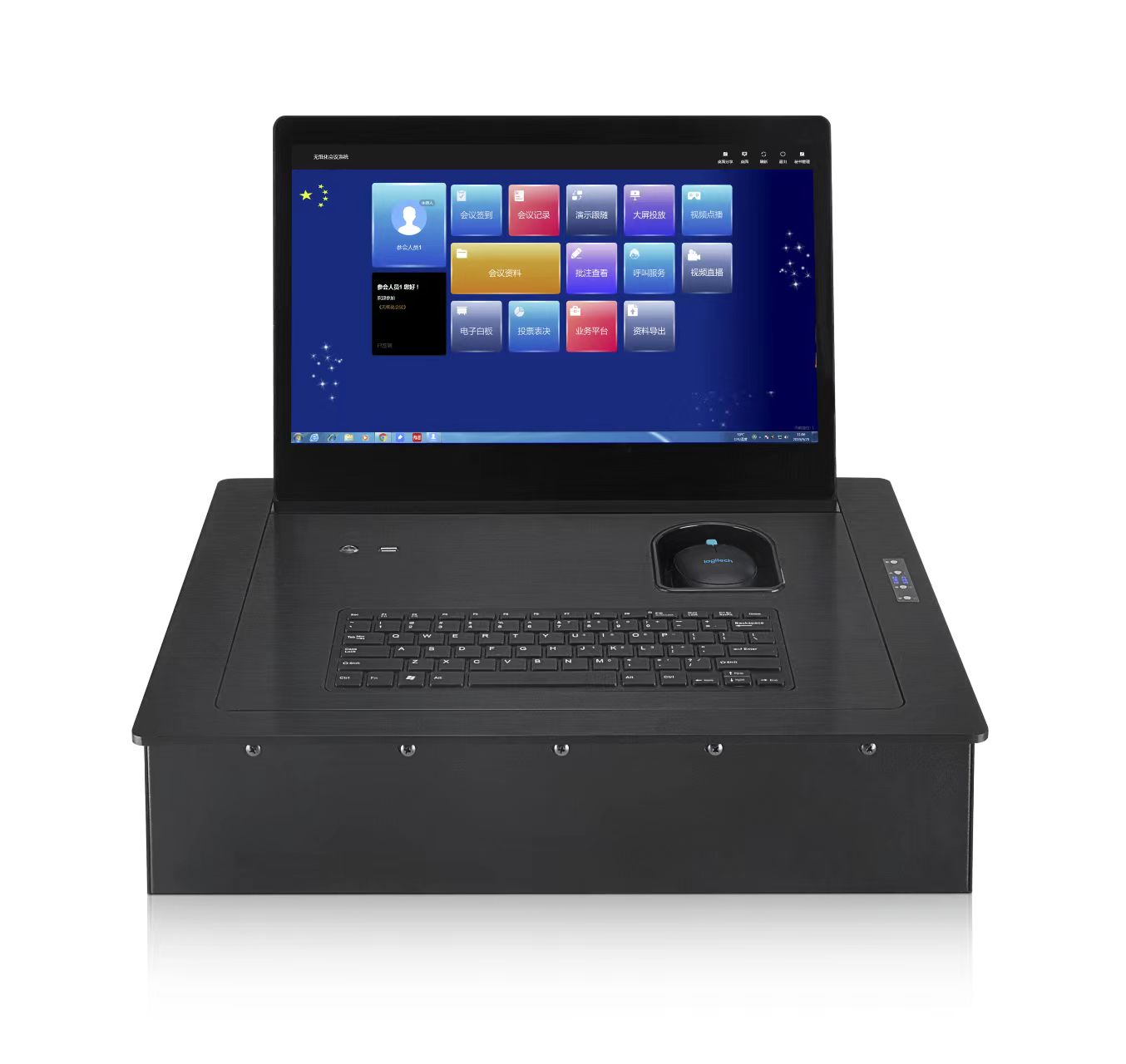

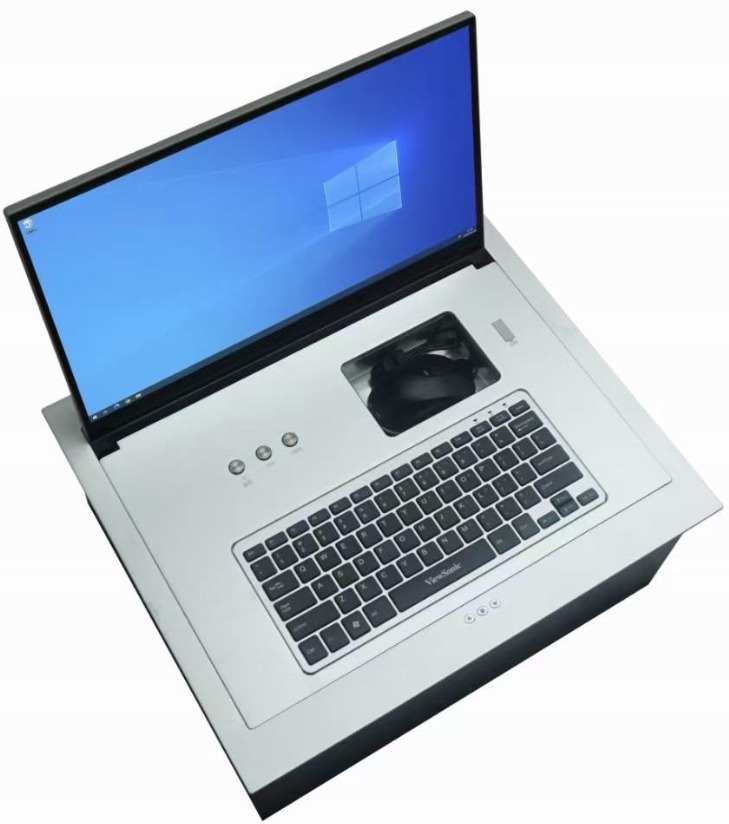

21.5-inch LCD screen flipper
Product introduction:
The ultra-thin high-definition screen lifter is the first multi-functional lifter developed by our factory for multimedia conference systems. The product is lightweight, has stable and reliable performance, and is simple and intelligent to operate. During the rising process of the LCD monitor, the panel automatically opens. After the LCD monitor stands upright and extends out of the desktop, the angle is automatically adjusted, which can be fine-tuned or continuously adjusted. When the lifter starts to descend, the LCD screen automatically adjusts to an upright state, the monitor power is automatically cut off, and the LCD screen is completely lowered and the panel automatically closes, avoiding manual operation and damage to the monitor. It has the functions of anti-theft, dustproof, and beautifying the desktop.
This product can be used as a single machine or in groups. The operation can be manual operation, remote control operation or centralized computer control through a central controller (purchased separately).
¡¡
Product features:
2. The back frame of the monitor is integrally formed of pure metal aluminum alloy, with a thickness of approximately 12mm, and the surface treatment is anodized wire drawing;
3. The transmission structure is a guide rail type rack, with stable operation and low noise;
4. A reasonable tank chain routing structure is adopted internally, and the machine will not have any broken lines or stuck lines when flipping before and after operation;
5. The panel buttons are made of metal material, with a fine appearance and superior texture. Long term use will not reduce button sensitivity;
6. The lifting flip screen has an intelligent power outage protection function, and all lines are equipped with standard double insulation and safety grounding anti leakage protection devices, which are non leakage and safe to use.
7. The raised and lowered flip screen desktop panel is equipped with a preset host switch button for more convenient startup, a preset USB information interface, and support for document data import and export.
8. The LCD screen lifting and flipping device has dustproof and anti-theft functions, is safe and reliable, and meets the requirements of different occasions.
9. The internal structure design is reasonable, with a delicate and ultra-thin appearance. The body is exquisite and exquisite, which can better reflect the noble personality, coordinate with the home environment, and have strong decorative properties.
10. Use shielding technology for the display circuit to resist signal and magnetic field interference, without radiation to the human body, and is environmentally safe.
11. The control circuit board adopts a globally advanced integrated intelligent identification chipset, and the limit switch adopts dual protection, with a long service life.
12. Except for screens and electronic components, the panel, chassis, and internal metal parts of this product are all made of aluminum alloy material, which has strong corrosion resistance;
13. The flipper comes with a dedicated keyboard, mouse, computer power on button, and USB data transmission interface.
In order to ensure the safety and stability of the product, the manufacturer must have certificates for the power outage and leakage protection of the LCD screen lifting and tilting device, as well as the dual limit automatic reset function of the LCD screen lifting and tilting device, and provide relevant supporting documents.
15. ¡ï Provide a testing report for the "Ultra Thin LCD Screen Flipper" product issued by a third-party authoritative organization (with a copy stamped with the original factory seal).
Product parameters:
Product type: Ultrathin screen flipper
Product size: 21.5 inches
¡ò Panel material: high-quality aluminum alloy
¡ò Panel color: black brushed, silver brushed
¡ò Control mode: manual control, remote control, central control
¡ò Motor power: 20W 220V 50/60Hz
¡ò Internal display screen power: 35W
¡ò Screen resolution: 1920 * 1080
¡ò Environmental temperature: -20~60 ¡æ
¡ò Relative humidity: 20%~80%
